300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

  • 1
  • 2

Brand Name : Kimpok Technology

Model Number : KP-TS5000

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 2,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Modulation : COFDM

Frequency : 300-800MHz(option), 12G/2.4G/5.8GHz(customized)

RF output Power : 2-5Watt (adjustable)

Voltage : DC 12V

Bandwidth : 1.25/2.5/6/7/8MHz(optional)

NLOS Distance : 1-3km

Size : 140*85*50mm

Weight : 800g (net weight)

Contact Now

300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting



Introduction:



This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in resolution 1920*1080P, short latency.



This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.


Features:



  1.  2-5Watt RF power adjustable;
  2.  Built-in with battery 2300mA ;
  3.  More intuitive and natural with a coulobmeter;
  4.  Popular with users, and was applied to any AV projects.



Tech Specification:



Transmitter parameters:



 Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
 RF output Power 2-5Watt(adjustable)
 Voltage DC12V
 Modulation COFDM
 Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
 Bandwidth 1.25/2.5/6/7/8MHz(optional)
 Transfer rate 2/4/6/8Mbps(optional)
 FEC 1/2,2/3,3/4,5/6,7/8(optional)
 Guard Interval 1/32,1/16,1/8,1/4 (optional)
 Video Input 1 line PAL/NTSC analog video
 Audio Input Analog stereo left and right channels
 Video Compression H.264
 Data encryption AES 265 bit / ALLTECH Basic scrambling
 Flatness

 ≤2dB(within full frequency range) ,

 ≤0.5dB (within 8MHz)
 Carrier  2K,8K
 Video Signal  1Vp-p@75Ω,NTSC/PAL adaptive
 Resolution  720×576(PAL) , 720×480(NTSC)
 RF Interface  N(F)
 Video Format  PAL/NTSC(self-adaption)
 AV Interface  BNC
 Case Material  Aluminum alloy, waterproof
 Built-in battery  2300mA, 3Hrs
 Work environment  -30~70°
 Distance  1-3km NLOS; 100km LOS from air to ground
 Size  180*100*60mm
 Weight  1444g(net weight)



Receiver parameters:



Frequency  300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Memory  60G, 1way 48hours recording
LCD monitor  7inch or 9.5 inch
Receive sensitivity  < -105dBm
RF Interface N(F)
Modulation  COFDM
Power supply AC220V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval  1/32,1/16,1/8,1/4 (optional)
Video Output  1 line PAL/NTSC analog video
Revolution  720×576(PAL) , 720×480(NTSC)
Lines of horizontal  625 or 525 Line
Audio Output  Analog stereo left and right channels
Data encryption  AES 265 bit / ALLTECH Basic scrambling
Voltage  AC220V±20V, DC14V~DC16V
Work environment -30~70°
Size  370*490*220mm
Weiht 18kg



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting





300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting

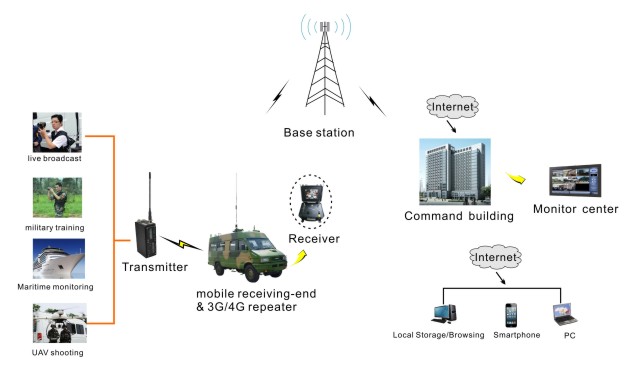

Installation Diagram:



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting



300Mhz-900Mhz COFDM Wireless Audio Video Transmitter For Broadcasting
